2011-2019 FORD 6.7L POWERSTROKE ALLIANT POWER COMPLETE FUEL CONTAMINATION KIT
**FOR 2020-2022 FORD 6.7L POWERSTROKE COMPLETE CONTAMINATION KITS, PLEASE CALL FOR AVAILABILITY (817-952-3333)**
Alliant Power Fuel System Contamination Kit for 2011-2022 Ford 6.7L Power Stroke Engines Equivalent to Ford OE# EC3Z-9B246-C / EC3Z-9B246-B / EC3Z-9B246-A
Did your Ford F-Series truck develop a P0087 (Fuel Rail Pressure Low) code? Did your pump receive little to no fuel leading to a lack of lubrication environment and ultimately failure of your CP4 pump, or did Diesel Exhaust Fluid (DEF) accidentally get added to the fuel system? If so, this Fuel System Contamination Kit from Alliant Power is exactly what you need to remove all of the harmful contaminates that are currently circulated through your fuel system and need to be replaced. Failure to replace all of these components, you run the risk of doing additional damage to your new or reman fuel components and ultimately back to where you started.
Features and Benefits:
- Two year, Unlimited mile warranty
- 100% Genuine OE or OE equivalent and validated components
- Each fuel system component is 100% end of line test at 15 different points to ensure zero leaks and peak performance
- One convenient kit that includes all necessary components to do a fuel system replacement
- USA assembled and built proudly in an ISO 9001:2015 certified facility
Alliant Power Part Number Reference:
- AP57000 - 2011-2014 Ford 6.7L Power Stroke Turbocharged Diesel
- AP57001 - 2015-2016 Ford 6.7L Power Stroke Turbocharged Diesel
- AP57002 - 2017-2019 Ford 6.7L Power Stroke Turbocharged Diesel
- AP57003 - 2020-2022 Ford 6.7L Power Stroke Turbocharged Diesel

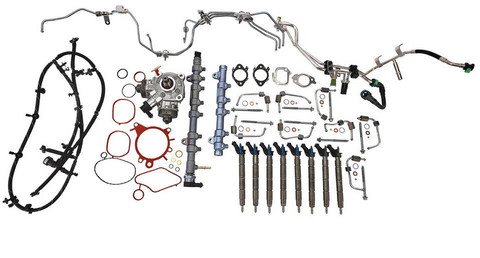

Included In the Box:
- (1) Reman OE Bosch CP4 Fuel Injection Pump OE# BC3Z-9A543-B (2011-2014)
- (1) Reman OE Bosch CP4 Fuel Injection Pump OE# FC3Z-9A543-A (2015-2019)
- (1) New OE Bosch Fuel Rail (Passenger Side) OE# BC3Z-9D280-A (2011-2019)
- (1) New OE Bosch Fuel Rail (Driver Side) w/ Rail Pressure Sensor & Fuel Pressure Regulator OE# BC3Z-9D280-B (2011-2019)
- (1) Fuel Line (HP Pump to Rails) OE# BC3Z-9E964-A (2011-2019)
- (4) Reman OE Bosch Injectors (Cyl 1/2/7/8) with Hold Down Bolt and Line (2011-2019)
- (4) Reman OE Bosch Injectors (Cyl 3/4/5/6) with Hold Down Bolt and Line (2011-2019)
- (1) Low Pressure Fuel Return Line OE# BC3Z-9A564-B (2011-2016)
- (1) Low Pressure Fuel Return Line OE# HC3Z-9A564-A (2017-2019)
- (1) Fuel Supply Assembly w/ Fuel Pressure Sensor and Temperature Sensor OE# EC3Z-9J280-B (2011-2014)
- (1) Fuel Pressure Sensor OE# FC3Z-9G756-A (2015-2019)
- (1) Fuel Pipe OE# FC3Z-9A274-A (2015-2019)
- (1) Fuel Pipe OE# FC3Z-9B337-B (2015-2016)
- (1) Fuel Pipe OE# HC3Z-9B337-B (2017-2019)
- (1) High Pressure Fuel Pump Install Kit PN# AP0157 (2011-2019)
For 2020-2022 Model Ford 6.7L PowerStroke Trucks:
- (1) Bosch CP4 Injection Pump OE# LC3Z9A543A
- (4) Bosch OE Injectors OE# LC3Z9H529A
- (4) Bosch OE Injectors OE# LC3Z9H529B
- (4) High Pressure Injector Lines OE# LC3Z9A337B
- (4) High Pressure Injector Lines OE# LC3Z9A337A
- (1) Pump To Rail Line OE# LC3Z9E964B
- (1) Pump To Rail Line OE# LC3Z9A337C
- (1) Pump To Rail Line OE# LC3Z9A337D
- (1) Pump To Rail Line OE# LC3Z9A337E
- (1) Injector Return Line OE# LC3Z9A564B
- (1) Pump Supply return line OE# LC3Z9J280A
- (1) Right Side High Pressure Rail OE# LC3Z9D280C
- (1) Left Side High Pressure Rail OE# LC3Z9D280D
- (1) Fuel Filter Kit OE# LC3Z9N184A
- (1) Intake Flap Gasket OE# LC3Z9E936A
- (2) Upper Intake Seals OE# LC3Z9439B
- (1) Vacuum Pump Gasket OE# HC3Z2A572A
- (1) Coolant Pipe O-ring OE# BC3Z8527N
- (1) Turbo Coolant Seal OE# HL3Z6N652A
- (1) Oil Fill O-ring OE# W716324S300
- (2) EGR Tube Gaskets OE# BC3Z9E464F
- (1) Fuel Cooler OE# LC3Z9N103A
Fitment: Cab Chassis Models May Require different supply lines, please call for verification
- 2011-2014 Ford F-250
- 2011-2014 Ford F-350
- 2011-2014 Ford F-450, 550, 650
- 2015-2016 Ford F-250
- 2015-2016 Ford F-350
- 2015-2016 Ford F-450 / 550 / 650
- 2017-2019 Ford F-250
- 2017-2019 Ford F-350
- 2020-2022 Ford F-250
- 2020-2022 Ford F-350
- 2020-2022 Ford F-450
- 2020-2022 Ford F-550
PLEASE NOTIFY BDD IF YOU ARE READY TO RETURN CORES BACK. YOU WILL BE PROVIDED WITH A FORM FROM ALLIANT POWER AND A RETURN LABEL TO SEND CORES BACK TO THE ADDRESS STATED ON THE FORM. IT IS VERY CRUCIAL THAT YOU FOLLOW THE INSTRUCTIONS THAT ALLIANT POWER PROVIDES IN THE CONTAMINATION KIT. PLEASE ALLOW 2-3 WEEKS FOR CORES TO BE PROCESSED BY ALLIANT POWER AND WE WILL HAVE A PENDING APPROVAL FOR CORE CHARGE REFUND.
CORES ARE AS FOLLOWS - 8 FUEL INJECTORS (NO BENT OR BROKEN STEMS), BOTH FUEL RAILS WITH SENSORS INTACT, AND CP4 WITH FUEL CONTROL ACTUATOR. CORE MUST BE FULLY INTACT TO RECEIVE FULL CORE CREDIT. IF NO SENSORS ARE PRESENT ON FUEL RAILS UPON CORE RETURN, BDD WILL DEDUCT $100 PER SENSOR. NO EXCEPTION. CUSTOMER HAS 30 DAYS TO RETURN CORES BACK TO ALLIANT POWER.
